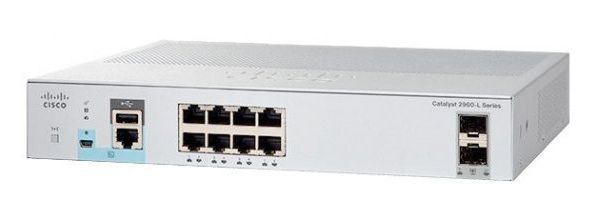

Catalyst 2960L ̣̣ ( WS-C2960L-8TS-LL )

Liên hệ

Mô tả

Catalyst 2960L 8 port GigE, 2 x 1G SFP, LAN Lite

CPU	ARMv7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Forwarding bandwidth	10 Gbps
Switching bandwidth	20 Gbps
Maximum active VLANs	64
Jumbo Ethernet frame	10,240 bytes
Network Security	Comprehensive 802.1X Multidomain authentication Access control lists (ACLs) Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+ and RADIUS authentication MAC address notification Multilevel security on console access BPDU guard Spanning-Tree Root Guard (STRG) IGMP filtering Dynamic VLAN assignment
Management	VLAN DHCP QoS Dynamic Trunking Protocol (DTP) Port Aggregation Protocol (PAgP) Link Aggregation Control Protocol (LACP) IGMP VLAN Trunking Protocol (VTP) Network Time Protocol (NTP)
Voltage	110 to 220 VAC
Power Consumption	Max. 0.04 kVA
Fanless	Yes
Dimensions	4.4 x 21.5 x 26.8 cm
Weight	1.51kg
